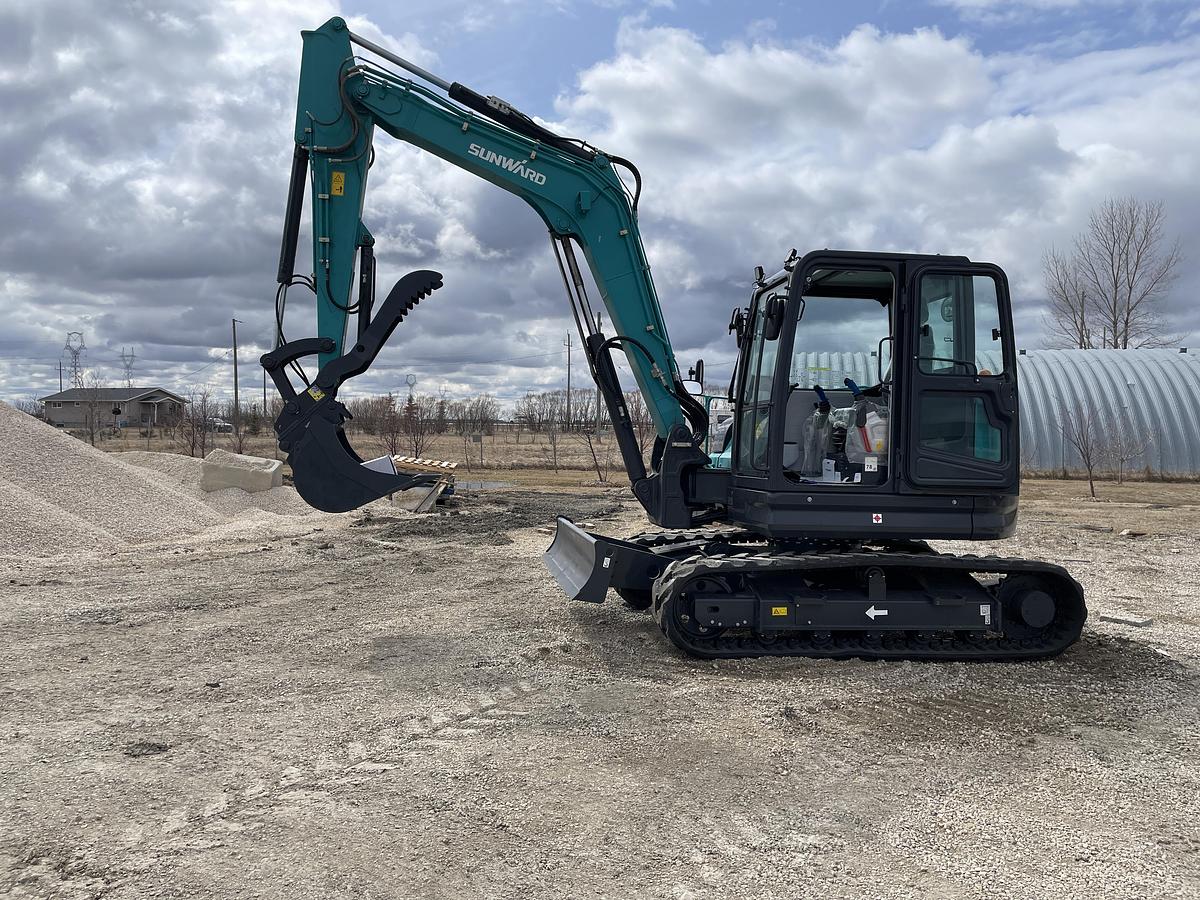

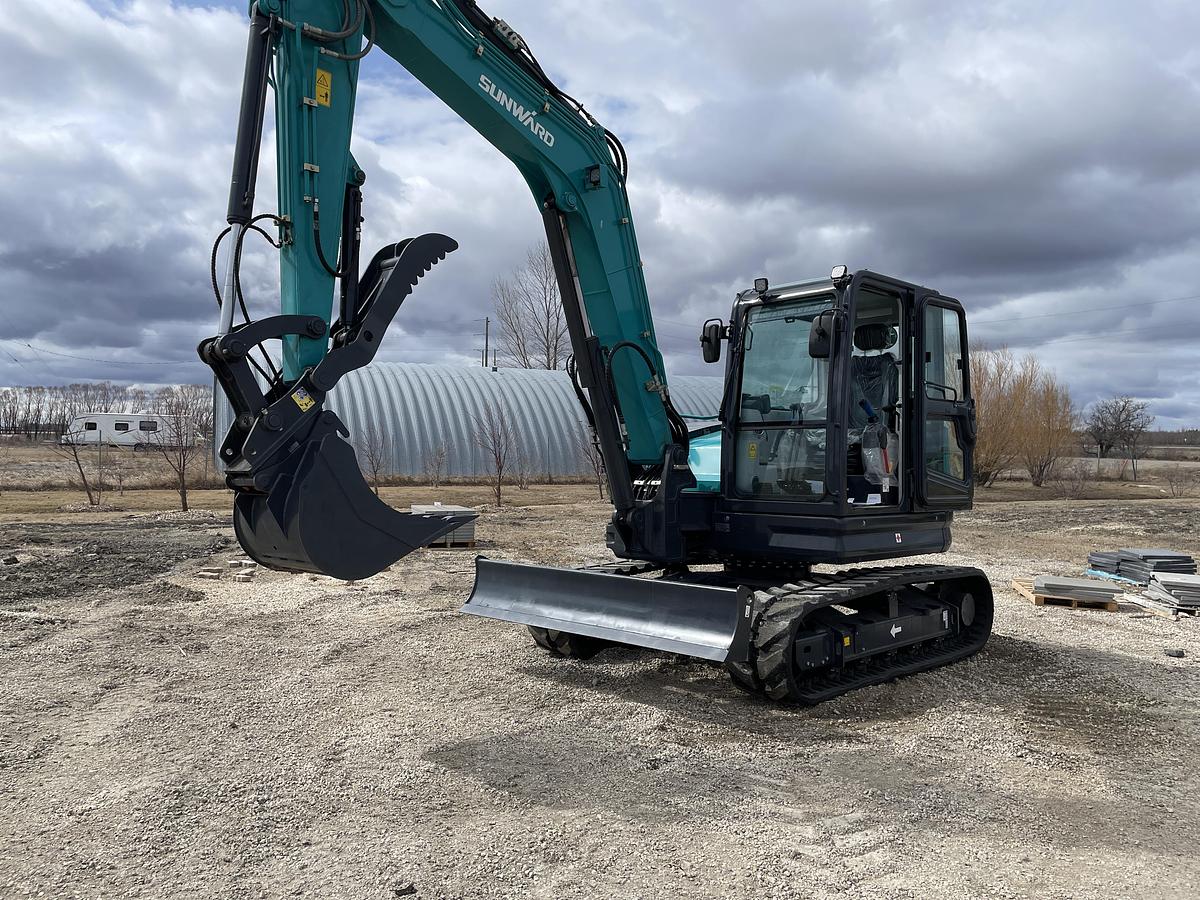

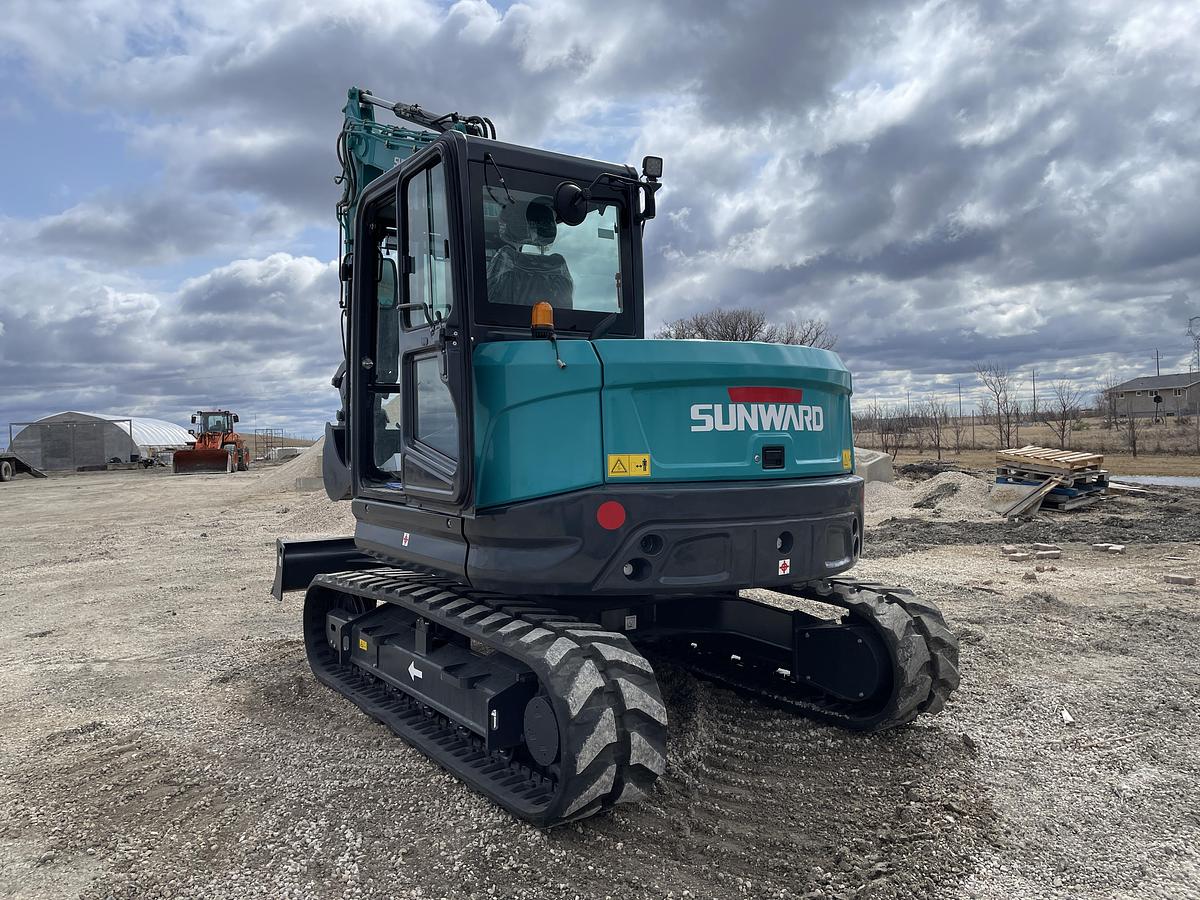

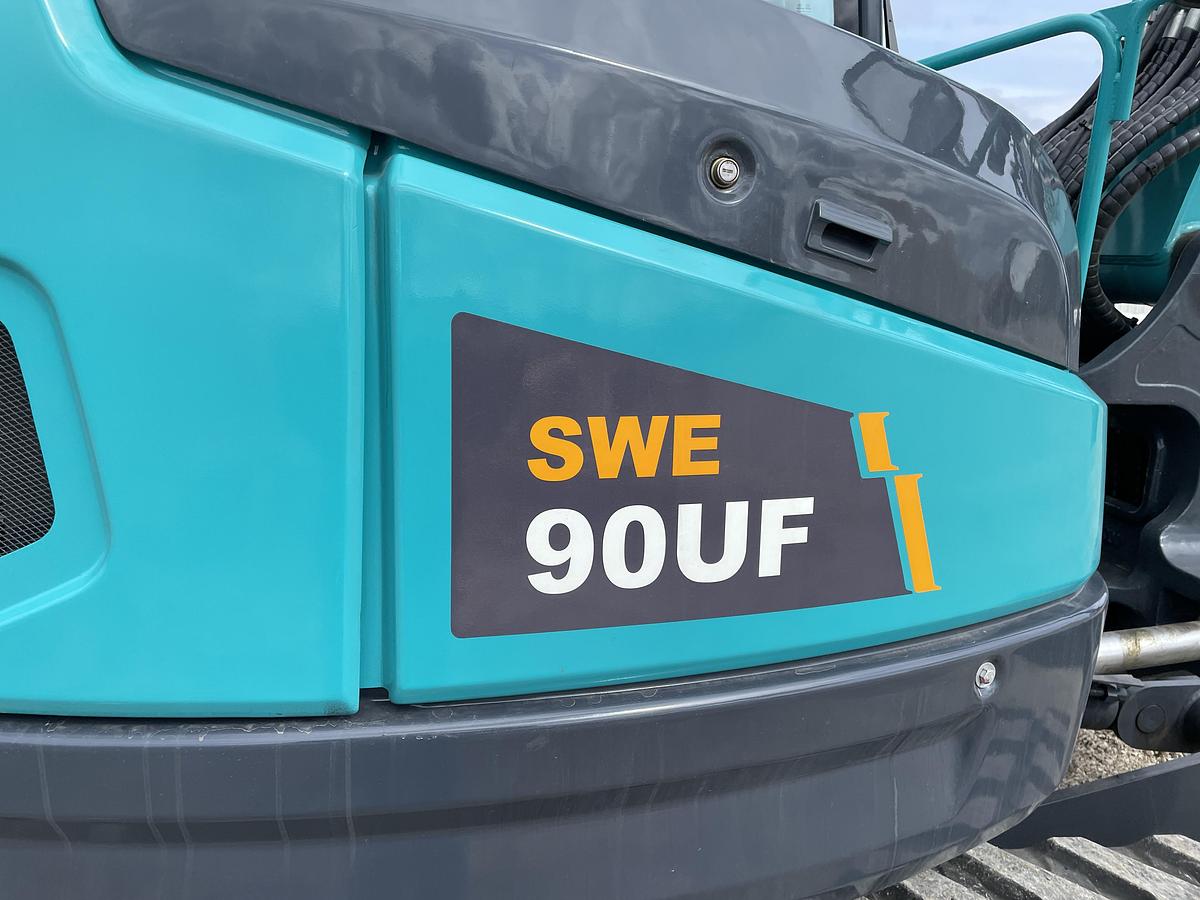

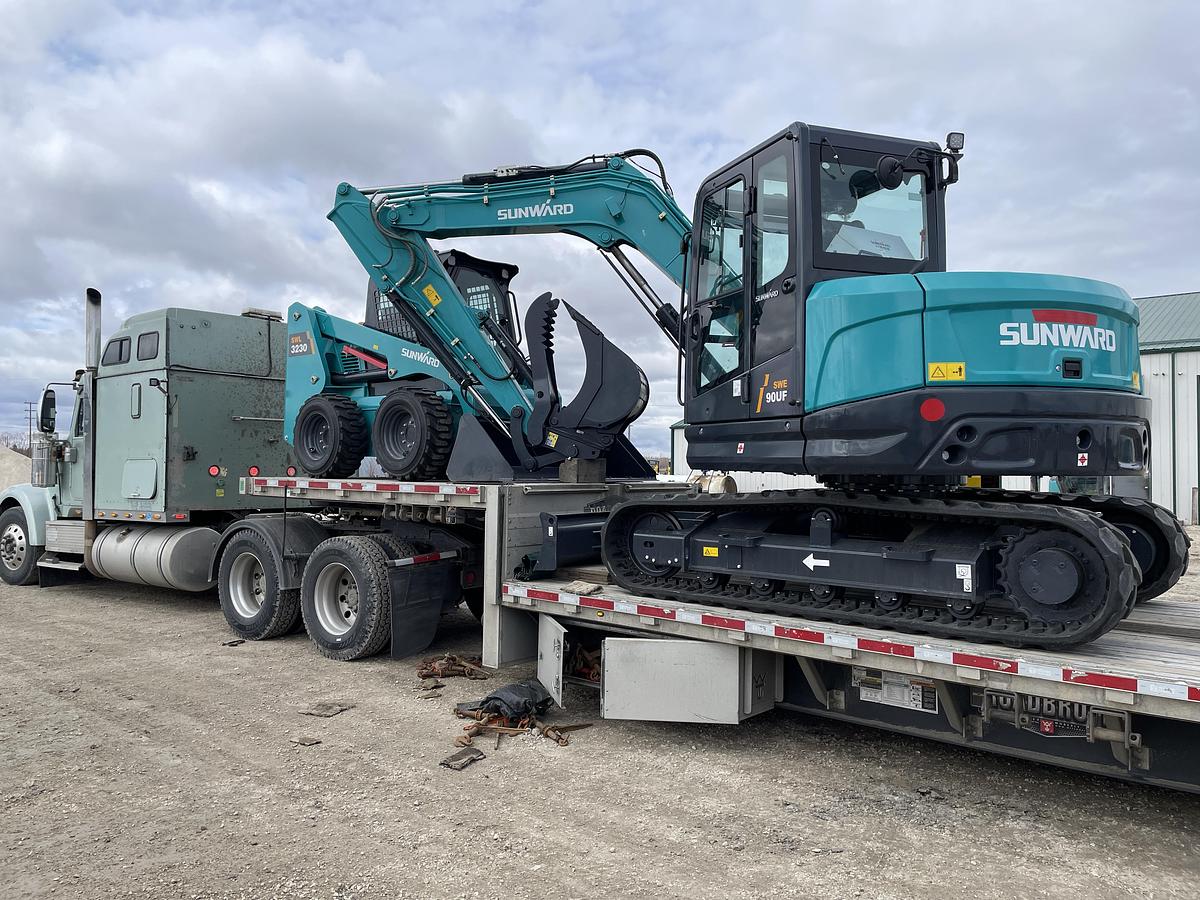

2026 Sunward SWE90UF Excavator

General

• Operating weight: 8,750–8,900 kg (19,290 lbs)
• Class: 9-ton compact excavator
• Tail swing: Ultra-short tail (tight jobsite friendly)
• Width: 2,250 mm (7'5")

Engine

• Engine: Yanmar 4TNV98C
• Horsepower: 62 HP (46.2 kW)
• Emission: Tier 4 Final / Stage V
• Displacement: 3.3L (approx.)

Hydraulic System

• Hydraulic flow: 160 L/min (26.4 GPM)
• System pressure: 28 MPa (4,064 PSI)
• Variable piston pump

Digging Performance

• Max digging depth: 4,545–4,735 mm (14'11")
• Max reach: 8,035 mm (24'5")
• Bucket digging force: 63.5 kN
• Arm digging force: 38 kN

Dimensions

• Transport length: 6,535 mm (21'4")
• Cab height: ~2,270 mm (7'5")
• Bucket capacity: 0.26 m³
• Width: 2,250 mm

Notable Features

• Ultra-short tail swing
• 3 working modes
• Dual proportional auxiliary controls
• Load-sensing hydraulics
• Factory aux hydraulics for attachments
• Up to 3-year warranty (market dependent)

Pricing shown does not include any current promotions or discounts. Give us a call to learn about available savings.

Photos shown are for reference only and may not represent the actual unit.
