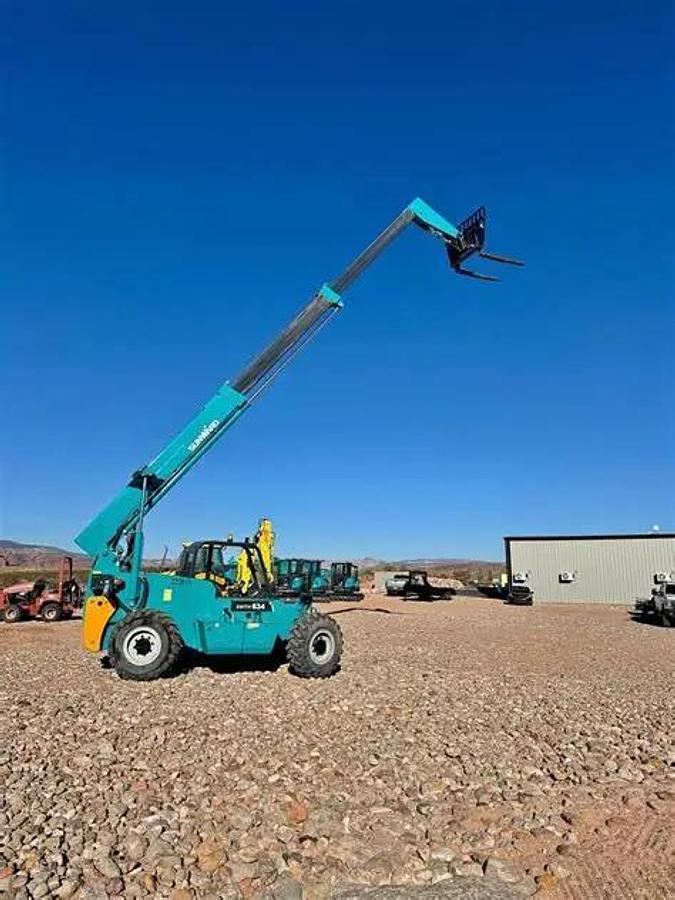

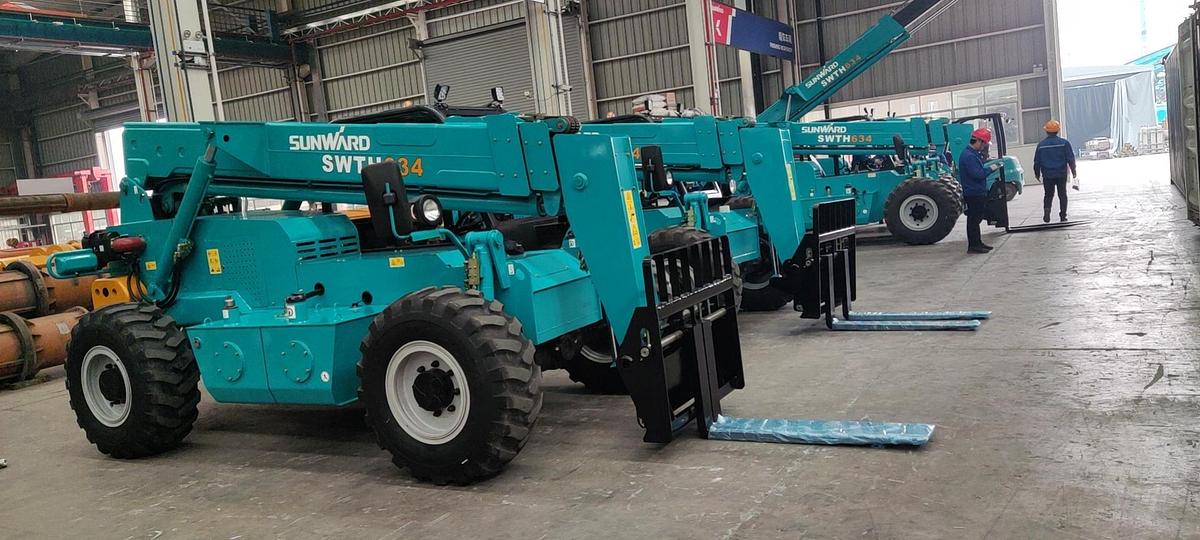

2024 Sunward SWTH634 Telehandler

General

• Rated lift capacity: 6,000 lbs (2,722 kg)
• Max lift height: 34 ft 5 in (10.5 m)
• Max forward reach: 23 ft (7 m)
• Operating weight: ~17,800 lbs (8,100 kg)
• Travel speed: 29 km/h (18 mph)
• Gradeability: up to 55–60%

Engine

• Engine: Deutz TCD 3.6L4 HT
• Horsepower: 74 HP (55 kW)
• Max torque: 390 Nm
• Emission: Tier 4 / Stage V
• Cooling: Liquid cooled

Dimensions

• Length to forks: 16 ft (4,900 mm)
• Overall length: ~19.5 ft (6,100 mm)
• Width: 7 ft 7 in (2,320 mm)
• Height: 7 ft 10 in (2,400 mm)
• Wheelbase: ~2,800 mm
• Ground clearance: ~350–365 mm

Lift Capacity (Typical)

• Rated capacity: 6,000 lbs
• Capacity @ max height: ~5,000 lbs
• Capacity @ max reach: ~900–1,200 lbs (varies by attachment)

Hydraulics / Drive

• Transmission: Hydro-dynamic
• Gears: 3 forward / 3 reverse
• 4-wheel steering (incl. crab steering)
• Frame leveling: ±10°

Tires

• Standard tires: 16/70-20

Pricing shown does not include any current promotions or discounts. Give us a call to learn about available savings.

Photos shown are for reference only and may not represent the actual unit.
