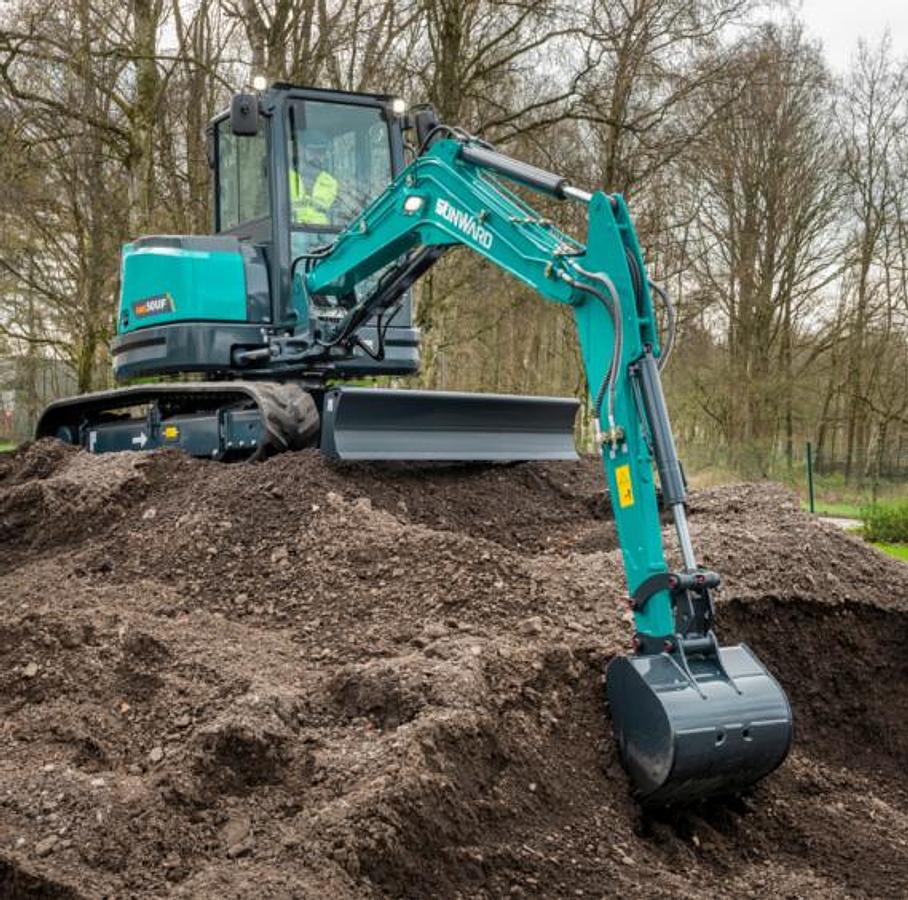

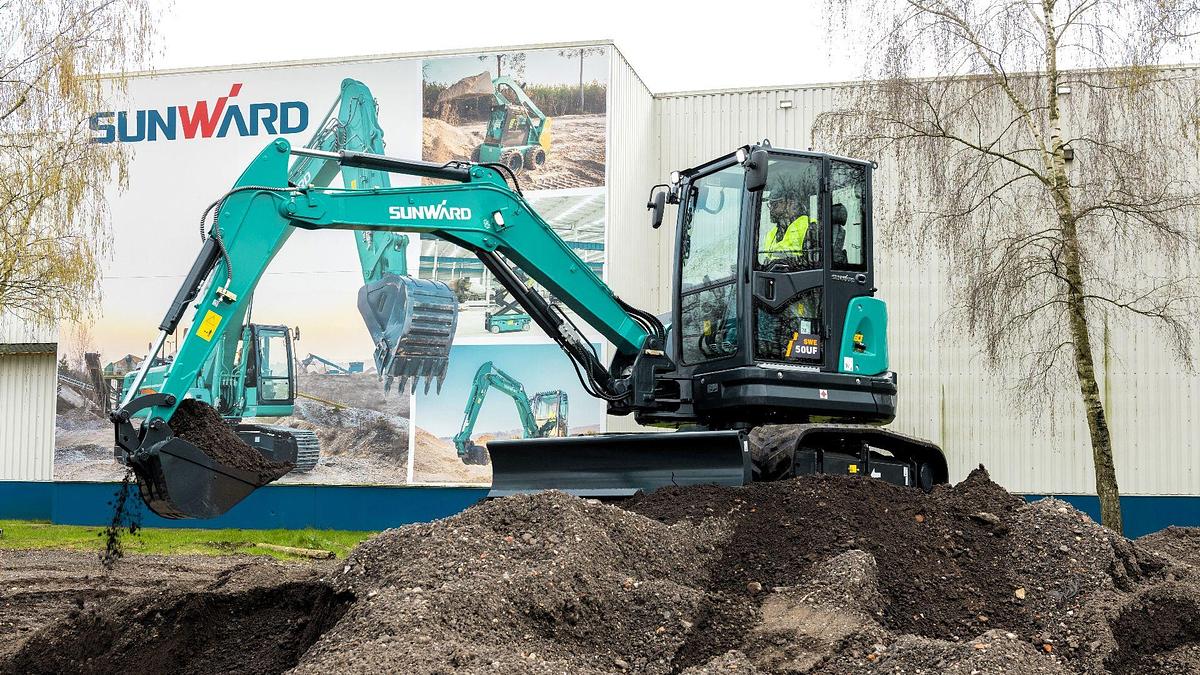

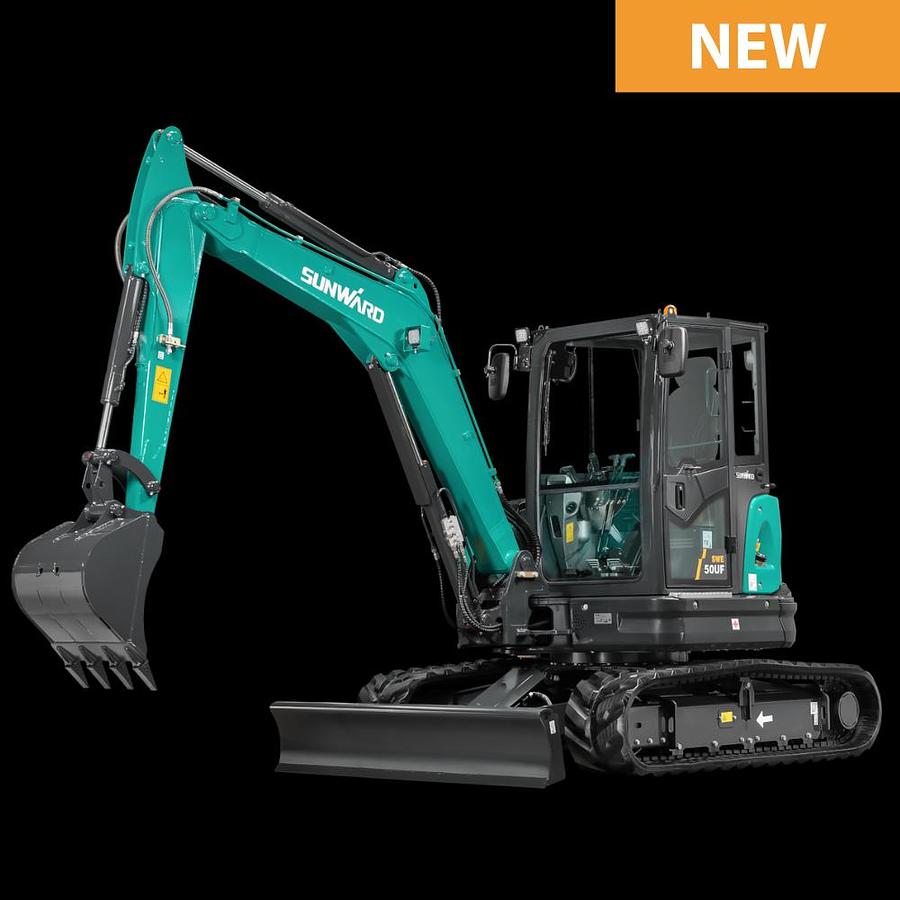

2025 Sunward SWE50UF Excavator

General

• Operating weight: 5,350 kg (11,800 lbs)
• Class: 5-ton compact excavator
• Tail swing: Zero tail swing
• Bucket capacity: 0.14 m³
• Width: 2,000 mm (6'7")

Engine

• Engine: Kubota D1803-T
• Horsepower: 29.7 kW (39.8 HP)
• Displacement: 1.8L
• Emission: Tier 4 Final / Stage V

Hydraulics

• Hydraulic flow: 110–121 L/min
• System pressure: 26 MPa (3,770 PSI approx.)
• Load-sensing hydraulic system
• 3 auxiliary lines standard

Digging Performance

• Max digging depth: 3,375 mm (11'1")
• Max reach: 5,940 mm (19'6")
• Bucket digging force: 34 kN
• Arm digging force: 23 kN

Dimensions

• Transport length: 5,435 mm (17'10")
• Width: 2,000 mm (6'7")
• Height: 2,570 mm (8'5")

Standard Features

• Zero tail swing design
• 7" touchscreen display
• 3 auxiliary hydraulic circuits
• Load sensing hydraulics
• Auto-idle fuel saving
• Factory quick-hitch hydraulics
• 4 LED work lights
• Full open service access

Pricing shown does not include any current promotions or discounts. Give us a call to learn about available savings.

Photos shown are for reference only and may not represent the actual unit.
