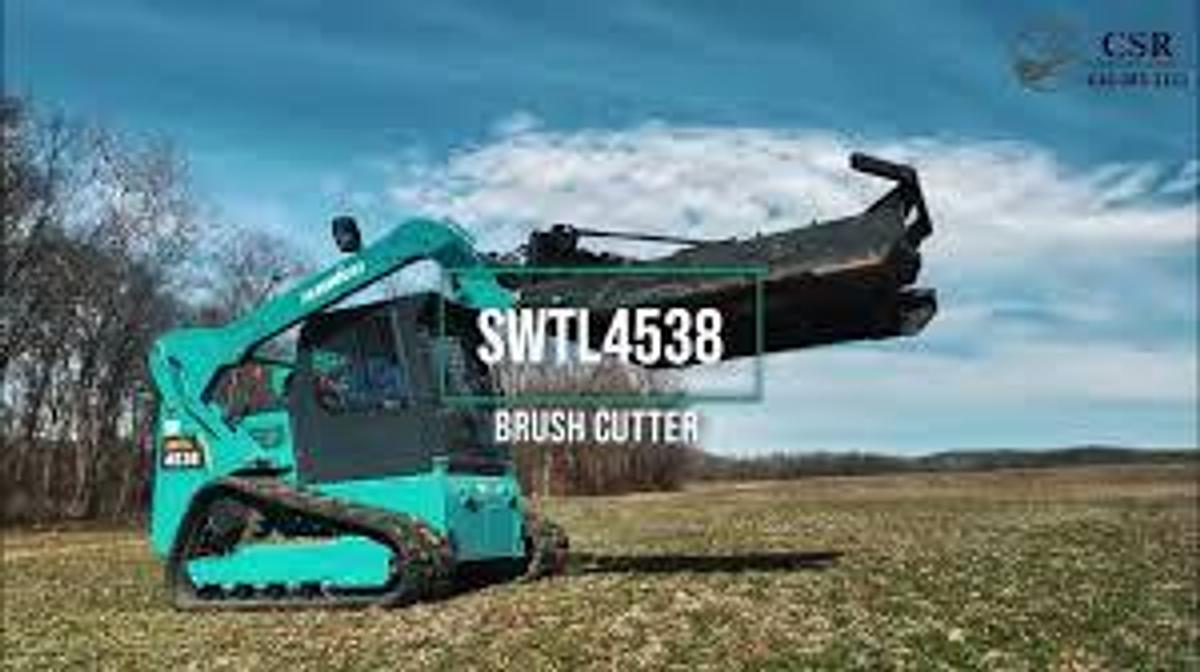

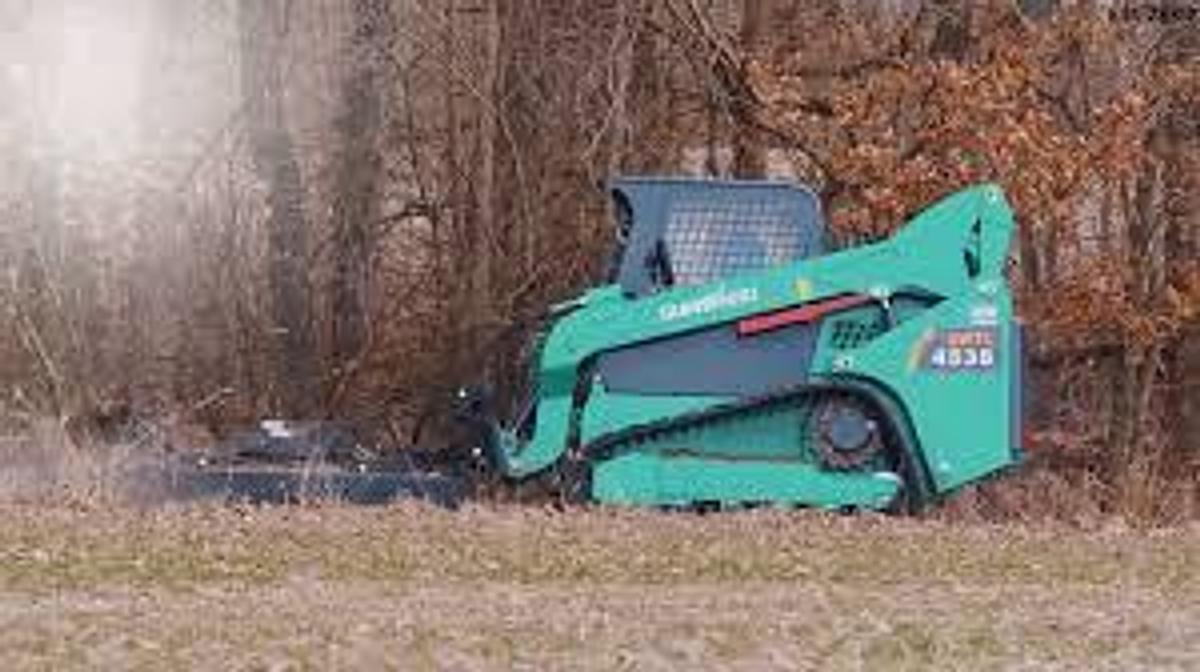

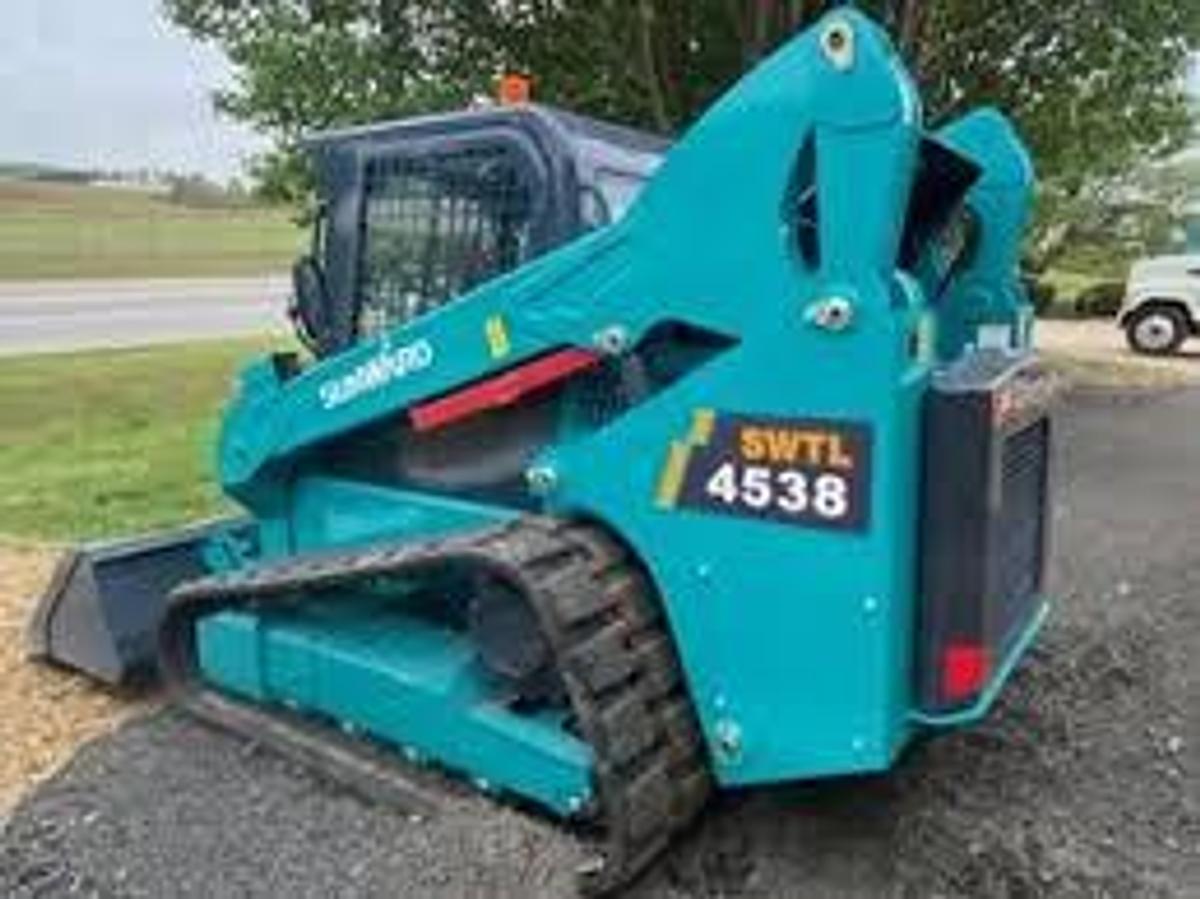

2026 Sunward SWTL4538 Compact Track Loader

Operating weight 10,150 lb

Rated operating capacity 2,648 lb

Tipping load 7,568 lb

Breakout force curl 7,613 lb

Breakout force lift 5,737 lb

Travel speed 4.8/7 mph

Overall dimension (L × W × H) (standard bucket) 147.0" X 79.3" X 81.5"

Maximum overall height 161.8"

Bucket pin height at maximum lift 126.7"

Height to top of cab 81.5"

Height to bottom of level bucket 120.0"

Length without bucket 116.9"

Length with bucket on ground 147.0"

Maximum dump angle 41°

Dump height 98.3"

Dump reach 37.3"

Rack back angle bucket on the ground 30°

Rack back angle at maximum height 89°

Track length on the ground 63.0

Departure angle 34°

Bucket width 79.3"

ENGINE KUBOTA Model V3307-CR-TE5B V3307-CR-TE5B Type Diesel, 4 cylinders, water cooled Diesel, 4 cylinders, water cooled Emission rating Tier 4 Final Tier 4 Final

Output 73.2 hp

Max torque 195.5 lb·ft

Rubber track

Rubber shoe width 17.72 Inch

Hydraulic flow (standard) 20 gpm

Hydraulic flow (high) 29 gpm
