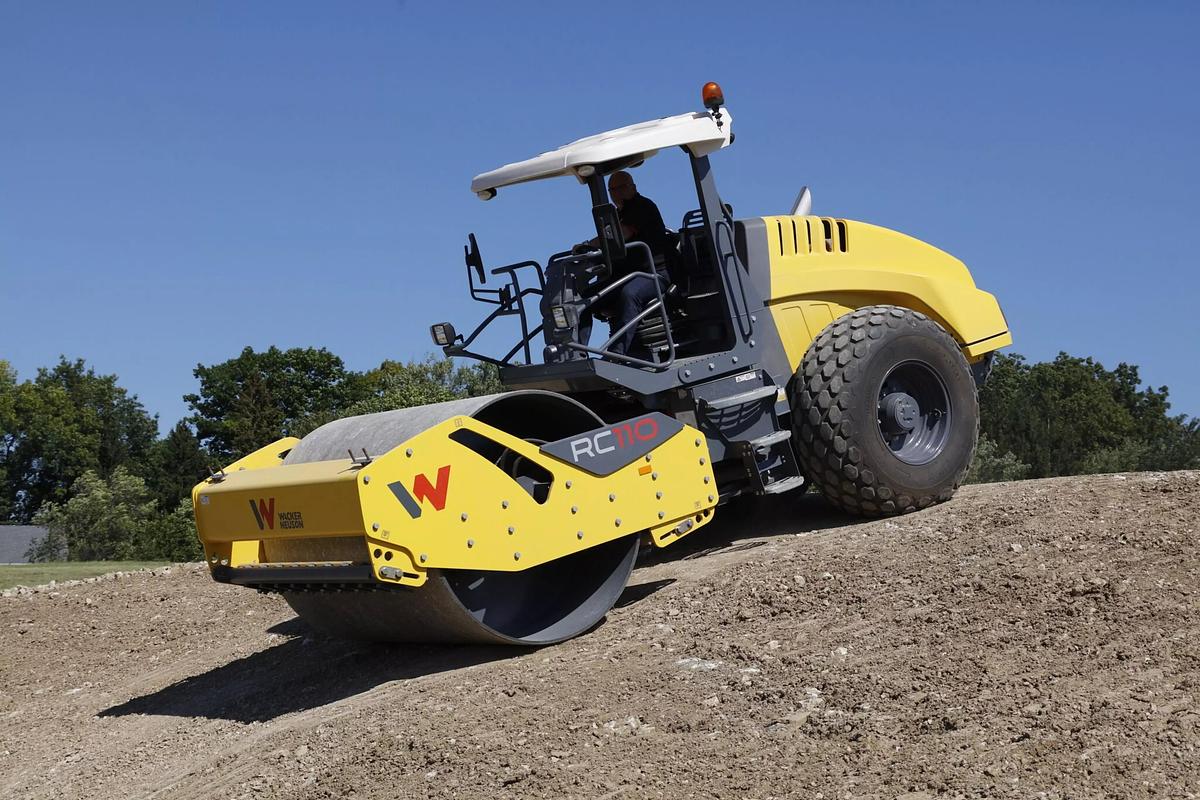

2026 Wacker Neuson RC110 Drum roller CANOPY W/ROPS, SMOOTH DRUM, DIAMOND TIRES

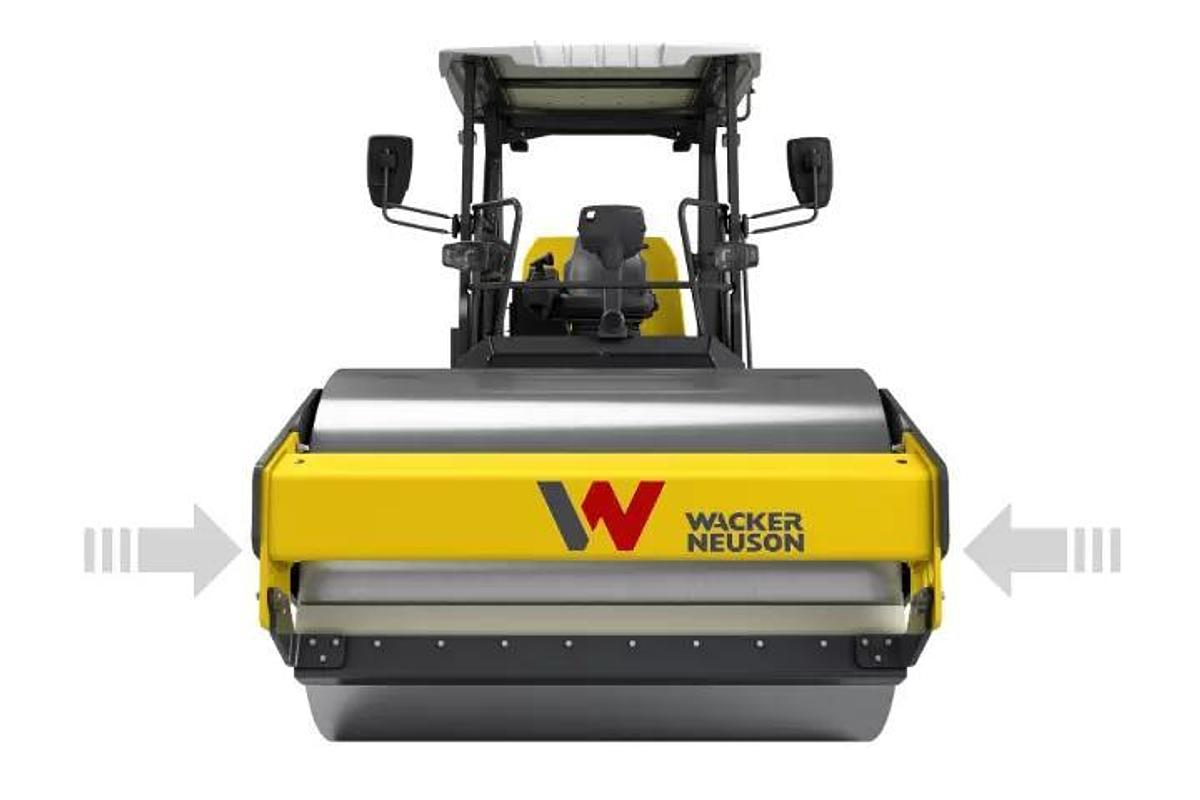

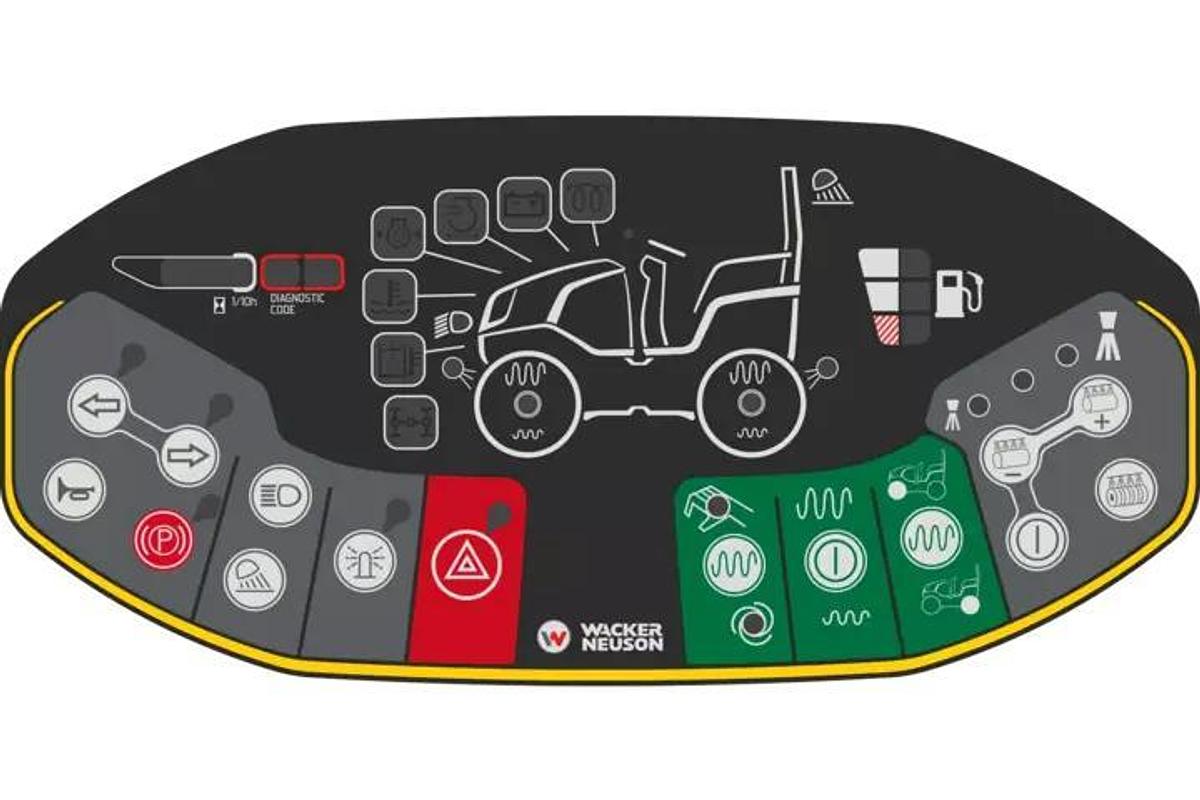

Perfect view in all directions makes work with the Wacker Neuson single drum soil compactors safer and comfortable. Because of the compact design, the operator always has the working area and the drums in view from his seat. With a large departure angle and outstanding gradeability, it is easy to maneuver even on uneven terrain. The simple operation via an intuitively-designed display and joystick makes working easier and ensures that the operator is familiar with the machine in no time.

Mechanical - Output Details

Gradeability 54.0 %

Gradeability max. (without vibration) 59.0 %

Travel speed 0.0 - 12.0 km/h

Static linear load (front) 2.75 kg/mm

Compaction force Level I (front) 304 kN

Compaction force Level II (front) 194 kN

Compaction force I (rear) 49 kN

Compaction force II (rear) 49 kN

Vibration frequency Level I (front) 30.0 Hz

Vibration frequency Level II (front) 36.0 Hz

Amplitude Level I (front) 2.0400 mm

Amplitude Level II (front) 0.8400 mm

Centrifugal force Level I (front) 246 kN

Mechanical Details

Length 5,850.0 mm

Operating weight 10,880.0 kg

Dry Weight 10,665.0 kg

Gross vehicular weight 11,020.0 kg

Curb clearance right 71.0 mm

Curb clearance left 71.0 mm

Operating width 2,140.0 mm

Ground clearance 390.0 mm

Turning radius inside 3,870.0 mm

Operating weight with roll-over protective structure 10,630.0 kg

Operating weight with cabin 10,880.0 kg

Wheelbase 3,150.0 mm

Operating weight, max. 13,290.00 kg

Curb clearance (left) 510.0 mm

Curb clearance (right) 510.0 mm

Total height with cabin 2,960.0 mm

Empty weight with cabin 10,665.0 kg

Empty weight with ROPS 10,415.0 kg

Slope angle (front) 53.0 °

Slope angle (rear) 32.0 °

Turning radius outside 6,120.0 mm

Engine

Cylinder capacity 3,621.0 cm³

Effective power 85.0 kW

Nominal Engine speed 2,300.0 1/min

Standard (Effective power) ISO 14396

Starter battery Voltage 12.0 V

Battery capacity (nom. value) 152.0 Ah

Engine Manufacturer Deutz

Engine Designation TCD 3.6 L4

Environment Data

Sound level LpA 88.0 dB(A)

Sound power LWA, measured 102.0 dB(A)

Sound power LWA, guaranteed 104.0 dB(A)

Exhaust aftertreatment DOC-SCR

Catalyst yes

Particle filter no

CO (NRTC) 0.0 g/KWh

CO2 (NRTC) 730.8 g/KWh

PM (NRTC) 0.0 g/KWh

Operating Fluids

Tank capacity AdBlue® / DEF 32.0 l

Fuel Tank capacity 280.0 l

Chassis

Pendulum angle +/- 10.0 °

Width over tires (rear) 2,208.0 mm

Number of tires (rear) 2.0

Wheel size (rear) AW 23.1-26 12 PR

Wheel load per tire (rear) 2,495.0 kg
